Sanitary Bin Activators


Sanitary Bin Activators

Overview

Metalfab's Sanitary Bin Activators feature the same rugged, durable, long lasting construction and unique operating features found in our standard steel bin activator line. However, a number of added features make our sanitary bin activators suitable for food applications - including continuous internal welds ground smooth, all contact surfaces polished, secondary baffle support without threads, primary baffle raised 2" off the cross members, round cross members with enclosed corners, white neoprene main sleeve and "bead blasted" exterior steel surfaces.

Features/Benefits

  • Wide Range of Sizes: 2' to 16' diameter
  • Unique Dual Baffle Design: features a primary and suspended secondary baffle that delivers continuous flow of dry materials without plugging, jamming or bridging
  • Endless beaded Flexible Sleeve: is 7/16" thick with 3-ply reinforcement that is designed to never puncture, slip or leak
  • Solid Steel Suspension Arms: are bolted 90° and can support up to 500,000 lbs. each to ensure the bin activator will always remain attached to the bin and cannot move off-center
  • Unitized Vibrator and Motor: combines the vibrator and motor in a single, sealed enclosure with no belts to slip or break - unconditionally guaranteed for 30 months
  • Performance Guarantee: every Metalfab bin activator is guaranteed to perform in accordance with specifications or the purchase price will be refunded
  • 304 or 316 stainless steel with #4 finish and easy-to-clean food grade gasketing

Operating Characteristics

  • Delivers long-lasting performance with low maintenance, maximum process "uptime" and high standard quality - all at a very competitive price

Specifications

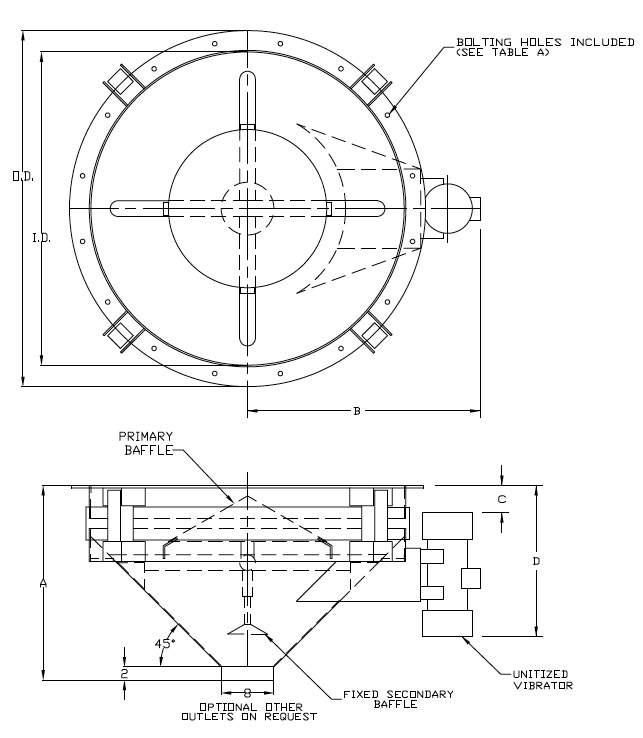

Dimensions

Model # DIA O.D. I.D. A B C D No. of Hangers T.E.N.V.
HP
BA-2 2' 26 1/2 23 1/2 16 1/2 22 2 1/4 15 3/4 4 1/2
BA-3 3' 41 3/8 35 3/8 22 5/8 31 3/8 2 3/4 16 1/4 3 1 1/2
BA-4 4' 53 1/4 47 1/4 29 1/2 35 1/4 4 1/8 22 7/8 4 1 1/2
BA-5 5' 65 1/4 59 1/4 36 3/16 41 1/4 4 1/8 22 7/8 4 1 1/2
BA-6 6' 79 1/4 71 1/4 43 1/8 49 1/16 3 11/16 27 13/16 6 3
BA-7 7' 91 1/4 83 1/4 50 55 1/4 5 1/8 26 3/8 6 3
BA-8 8' 103 95 56 7/8 61 1/2 7 7/8 29 1/8 8 3
BA-10 10' 127 119 70 77 11/16 10 7/8 34 1/16 16 4
BA-12 12' 151 143 81 92 1/4 11 1/8 44 20 6
Product Spec
Model # DIA No. of Bolt Holes Hole Requirements
BA-2 2' (8) 11/16 dia holes eq sp on a 26 3/4 dia b.c.
BA-3 3' (12) 11/16 dia holes eq sp on a 38 3/4 dia b.c.
BA-4 4' (16) 1/16 dia holes eq sp on a 51 dia b.c.
BA-5 5' (16) 11/16 dia holes eq sp on a 63 dia b.c.
BA-6 6' (24) 13/16 dia holes eq sp on a 75 1/2 dia b.c.
BA-7 7' (30) 1 1/8 dia holes eq sp on a 87 1/2 dia b.c.
BA-8 8' (36) 1 1/8 dia holes eq sp on a 99 1/2 dia b.c.
BA-10 10' (36) 1 1/8 dia holes eq sp on a 123 dia b.c.
BA-12 12' (40) 1 1/8 dia holes eq sp on a 147 dia b.c.

Construction

  • 304 or 316 stainless steel contact surfaces, #4 finish, and white neoprene food grade continuous sleeve

Available Options

  • Constructed to 3A Standards
  • Other Metalfab upstream/downstream bin activators, Convey-All™ Conveyors, bulk bag unloaders, PosiBins™ and hoppers
