M.A.P. Screw Feeder


MAP Screw Feeder

Overview

Metalfab's new M.A.P. (Maximum Application Performer) Feeder combines the proficiency of Metalfab's unique agitator/conditioner screw (with 360° influencing capability) with the precision of Metalfab's vibration-controlled hoppers to accurately meter the most difficult dry solid particles.

Features/Benefits

  • Only 5 Moving Parts - ensures reliable, long-lasting performance with virtually no downtime for repair or replacement
  • Unique Agitator/Conditioner Screw - completely fills the feed screw for high accuracy of ±1 to 1-½ %
  • Interchangeable Screw/Tube Combinations - available in 1" to 6" sizes and permit feed rates from 0.15 to 550 cu. ft/hr
  • Motor - AC Variable Frequency drive is standard. Options available.

Operating Characteristics

Provides highly accurate metering of Titanium Dioxide, Iron Oxide, Carbon Black, Kaolin Clay, Cocoa Powder, Diatomaceous Earth, Gypsum, Soda Ash, Magnesium Oxide, Milk Powder, Stearic Acid, Talc, Toner Powder, Paraffin Wax, Wood Flour, Zinc Oxide, and other difficult materials.

Specifications

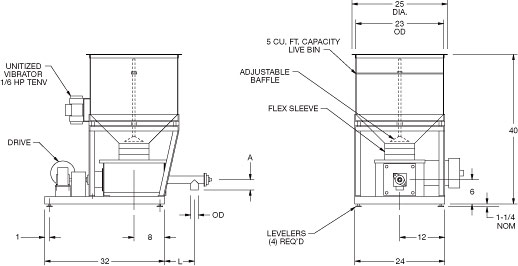

Dimensions

Product Spec Image
Model Feed Rate
(cu ft/hr)
Min-Max 		A L OD HP
MAP 5-1 3 1 1/2" 8" 2 3/4" 3/4
MAP 5-1 1/2 8 2" 8" 2 3/4" 3/4
MAP 5-2 20 2 1/2" 8" 2 3/4" 3/4
MAP 5-3 60 3 1/2" 12" 3 1/4" 1
MAP 5-4 175 4 1/2" 14" 3 3/4" 1
MAP 5-6 550 6 5/8" 21" 4 3/4" 1

Construction

  • Carbon steel, carbon steel epoxy coated, 304 or 316 stainless steel, Other materials available.
