LVT (Low Vibration Transmission) Bin Activator

Overview

Metalfab's ruggedly built, stainless steel LVT Bin Activator for use with sensitive scaling equipment provides the continuous flow of dry materials while decreasing the amount of vibration transmission. Our LVT Bin Activator uses threaded rod isolators as hanger arms to diminish trembling or shuddering effects. (This product is recommended for materials with bulk densities less than 50 lbs./cu.ft.)

Features/Benefits

  • Low Vibration Transmission for use with sensitive scale systems
  • Dimensions: Diameters of 20" to 30"
  • Uses threaded rods and low durometer isolators for reduced vibration
  • Ideal for use with sensitive scaling systems and equipment or for loss in weight gravimetric feeding

Operating Characteristics

  • Uses threaded rod isolators for hanger arms (recommended for materials with bulk densities less than 50 lbs./cu/ft.)

Specifications

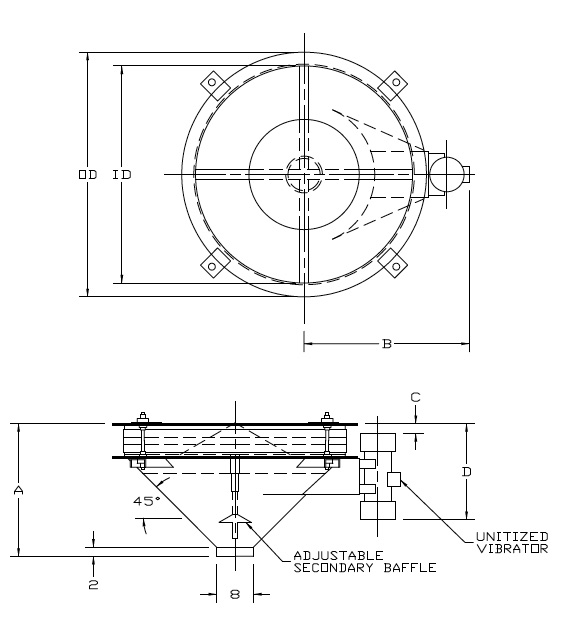

Dimensions

Product Spec Image
Model
#		 DIA O.D. I.D. A B C D No. of Hangers HP
BA-3 3' 40-1/2 35-1/2 22-5/8 29 4-1/8 22-7/8 4 1-1/2
BA-4 4'' 53-1/4 47-1/4 29-1/2 35-1/4 4-1/8 22-7/8 4 1-1/2
BA-5 5' 65-1/4 59-1/4 36-3/16 41-1/4 4-1/8 22-7/8 4 1-1/2

Construction

  • Carbon steel, 304 or 316 stainless, specialty coatings
