Convey-All™ Vibrating Screw Conveyor


Convey-All™/VTC Vibratory Tube Conveyor

Overview

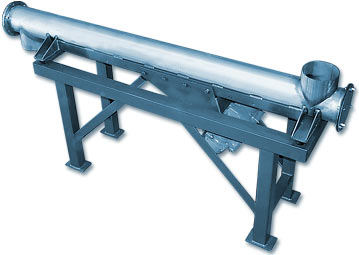

Metalfab Convey-All/VTC Vibratory Tube Conveyors provide a way to convey high rates of difficult flowing or friable dry solids materials. Conveyors are available in 4 to 10 ft. lengths and nominally convey up to 400 cu. ft./hr. Engineered with only two moving parts, vibrators and isolators, the conveyors are economical to use, easy to clean, and simple to maintain with virtually no process downtime.

Features/Benefits

  • Rugged, Flexible Design provides long life and versatility to accommodate other Metalfab upstream and downstream equipment such as bin activators, bulk bag unloaders, Posibins™, feeders, and hoppers
  • Clamp-On Vibrating Tube can be easily removed or replaced for use with other materials
  • Only Two Moving Parts make the conveyor economical to operate and easy to maintain with virtually no process downtime
  • Choice of Top or Bottom Mounted Conveyor and/or Drive provides maximum installation flexibility
  • Four Point Suspension System isolates energy to the conveyor resulting in high conveying rates with low power consumption
  • Easily Accessible Cleanout Ports provide quick and easy cleanout of the conveyor
  • Quiet Dust-Free Operation meets OSHA decibel requirements and minimizes housekeeping
  • Optional SS Wetted Part Sanitary and Pressurized Designs allow flexibility to meet a wide range of applications

Operating Characteristics

  • Handles powders, pellets, flakes, and other dry solids
  • Nine models in 4 to 10 ft. lengths
  • 6" to 10" diameter tubes convey from 110 to 400 cu. ft./hr.
  • Ruggedly built for continuous, long lasting operation

Specifications

Dimensions

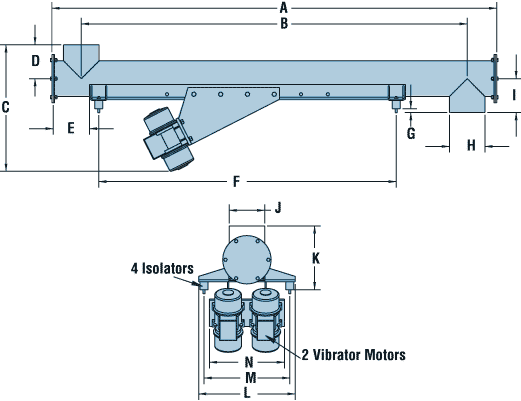

Model Convey Rate
Max. (cu.ft./hr.)		 HP A B C D E F G H I J K L M N
VTC-6-48 110 1/4 59 48 23-9/16 6-5/16 9 31-1/2 3/4 6-5/8 OD 6-5/16 6-5/8 11-15/16 18 16 14
VTC-6-60 110 1/4 71 60 23-9/16 6-5/16 15 31-1/2 3/4 6-5/8 OD 6-5/16 6-5/8 11-15/16 18 16 14
VTC-6-72 110 1/4 83 72 23-9/16 6-5/16 21 31-1/2 3/4 6-5/8 OD 6-5/16 6-5/8 11-15/16 18 16 14
VTC-8-72 175 1/3 85.50 72 29-9/16 8-5/16 14-1/4 52-1/2 1-1/4 8.62 OD 8-5/16 8.63 16.37 21 18 16
VTC-8-84 175 1/3 97.50 84 29-9/16 8-5/16 20-1/4 52-1/2 1-1/4 8.62 OD 8-5/16 8.63 16.37 21 18 16
VTC-8-96 175 1/3 109.50 96 29-9/16 8-5/16 26-1/4 52-1/2 1-1/4 8.62 OD 8-5/16 8.63 16.37 21 18 16
VTC-10-96 400 1/2 113.50 96 34.71 10 16-3/4 75-1/2 1-1/4 10.75 OD 10 10.75 18-3/8 24 20 19
VTC-10-108 400 1/2 125.50 108 34.71 10 22-3/4 75-1/2 1-1/4 10.75 OD 10 10.75 18-3/8 24 20 19
VTC-10-120 400 1/2 137.50 120 34.71 10 28-3/4 75-1/2 1-1/4 10.75 OD 10 10.75 18-3/8 24 20 19
Product Specs

Construction

  • Standard Units: All metal contact parts are304 stainless steel with 2B mill type finish.
  • Sanitary Units: All metal contact parts are 304 stainless steel with #4 polish on contact surfaces and Heliarc welds that are crack and crevice free. Epoxy painted exterior carbon steel parts.
  • Vibrator Motors/Isolators: Two TENV, 230/460V, 3 phase vibrator motors (below mounted vibrator standard; top mounted vibrators available at no extra charge). Four elastomer isolators to isolate energy to conveyor for high conveying rates at low energy consumption.

Available Options

  • End plate hand nuts; 1/4, 1/3 and 1/2 HP explosion-proof vibrator motors; bolted and gasketed access panel on top of tube; clear plastic end caps; conveyor tube extensions; high temperature items (isolators, spacers for vibrator motors, inlet/outlet sleeves). Consult factory for details.
  • Other Metalfab upstream/downstream bin activators , Convey-All™ Conveyors, bulk bag unloaders, Posibins™ and hoppers
