MTM "Mini" Screw Feeder


MTM "Mini" Volumetric Screw Feeder

The MTM Mini is an upgrade of the DB1 "Mini" Volumetric Screw Feeder which incorporates the latest technology including a smaller footprint.

Overview

Designed for small feed rates and laboratory applications, Metalfab's MTM "Mini" Feeders provide dependable, highly accurate feeding of a wide variety of dry solid materials from an extremely small base of only 14-1/4" x 17". An optional 2 cu. ft. hopper with sharply sloped sides is available to provide capacity for most surge conditions. The hopper is removable and can be replaced with up to a 6" diameter inlet trough cover. The unit can then be preceded by a Metalfab FSC (flexible screw conveyor) or Posibin™.

Features/Benefits

  • Accuracy: ±1 to 1-½% (one minute samples)
  • Screw Sizes: 1/2", 3/4", 1", 1 1/2"
  • Feed Rates: 0.03 to 8 cu. ft./hr. maximum
  • Motor: AC Variable Frequency drive is standard. Options available.

Operating Characteristics

  • Dependable, accurate feeding of a wide variety of dry solid materials in an extremely small footprint
  • Rugged design

Specifications

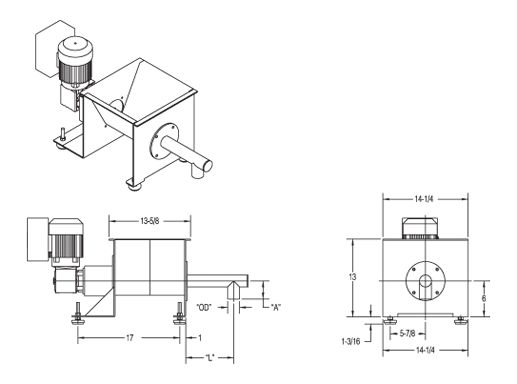

Dimensions

Product Spec Image
Model Feed Rate
(cu ft/hr)
Min-Max 		Screw Dia. A L OD HP
MT Mini 1/2 0.03-0.3 1/2" 1 1/2" 8" 1" 1/2
MT Mini 3/4 0.05-1 3/4" 2" 8" 1 1/4" 3/4
MT Mini 1 0.15-3 1" 2" 8" 1 1/2" 3/4
MT Mini 1 1/2 0.4-8 1 1//2" 3" 8" 2" 3/4

Construction

  • Carbon steel, carbon steel epoxy coated, 304 or 316 stainless steel. Other materials available.
